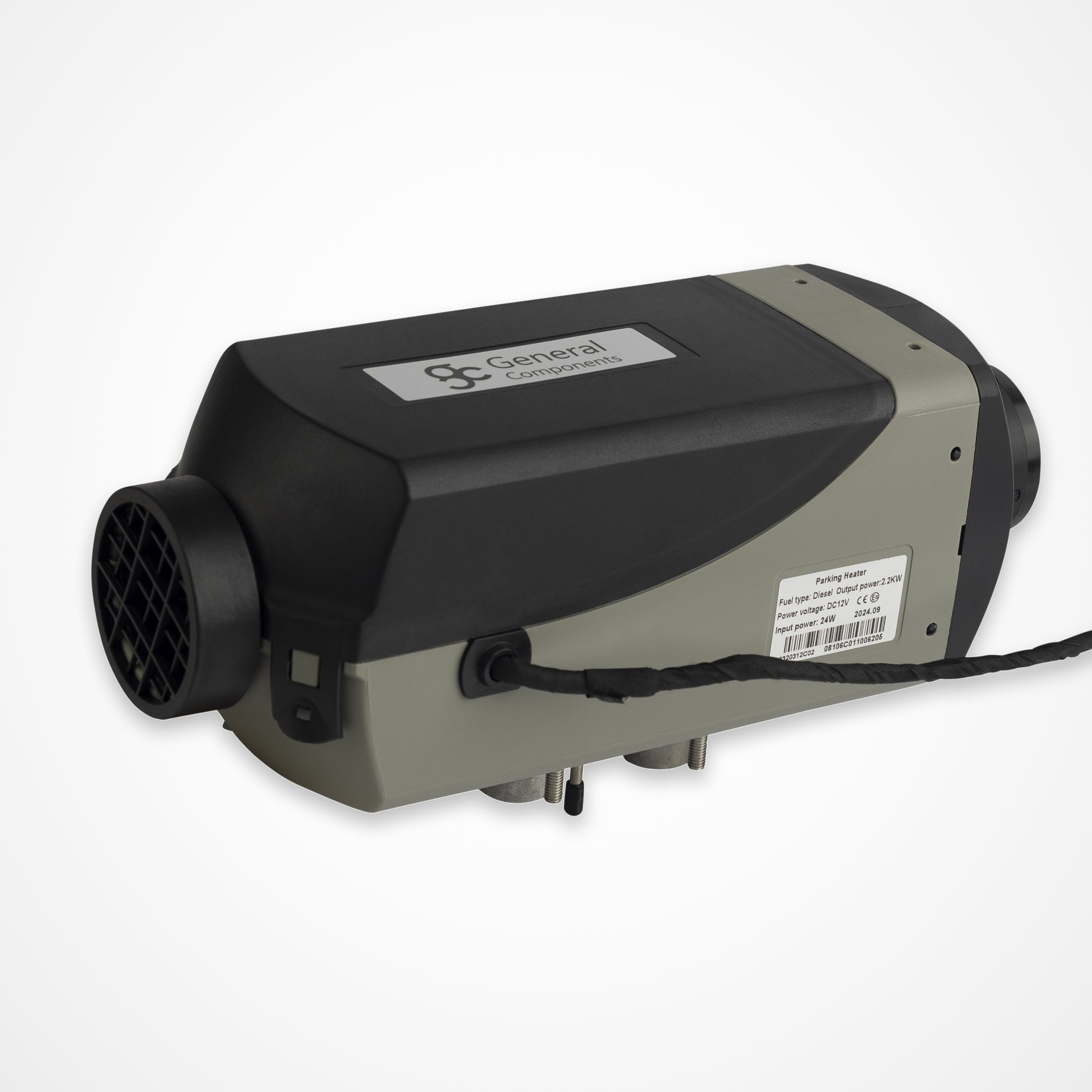

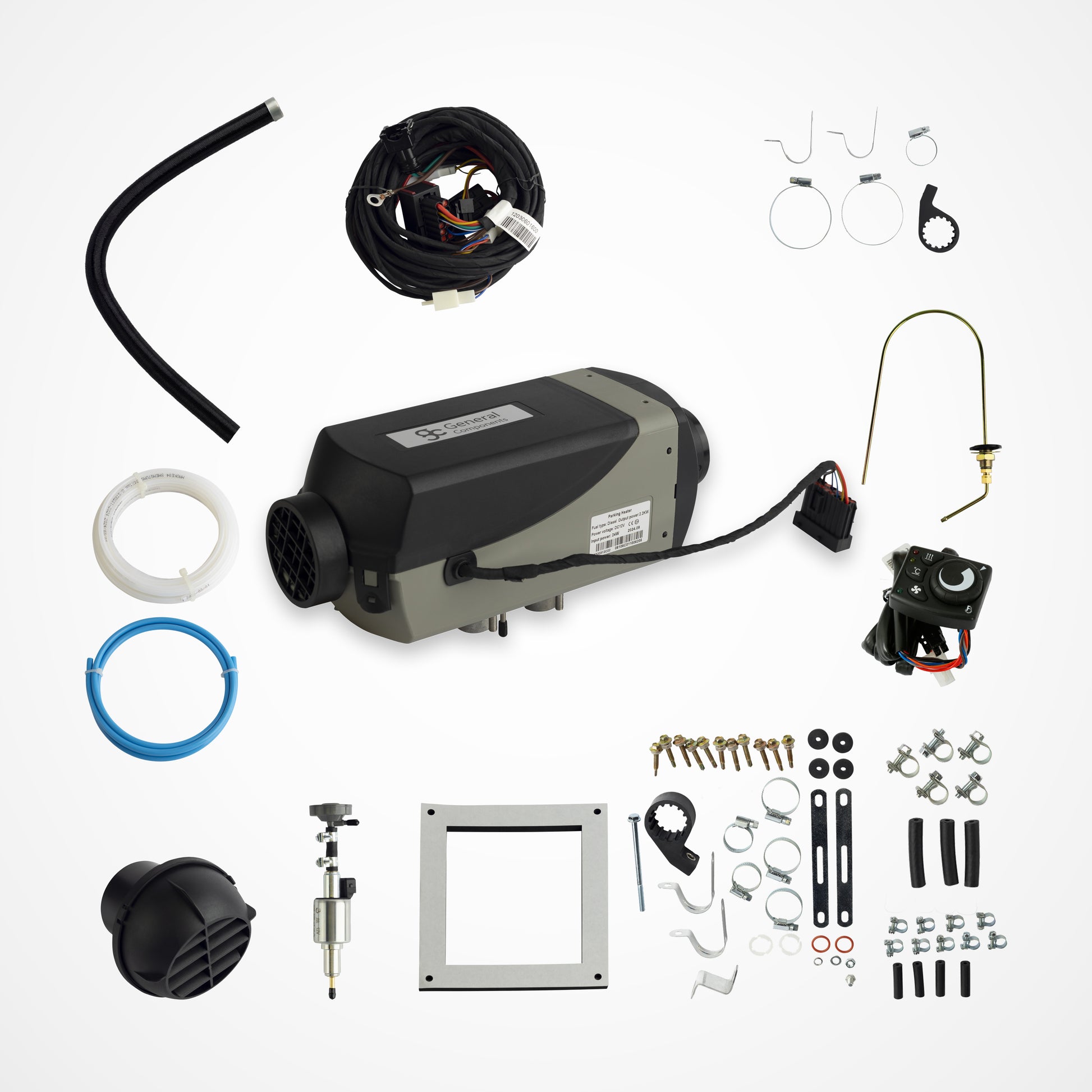

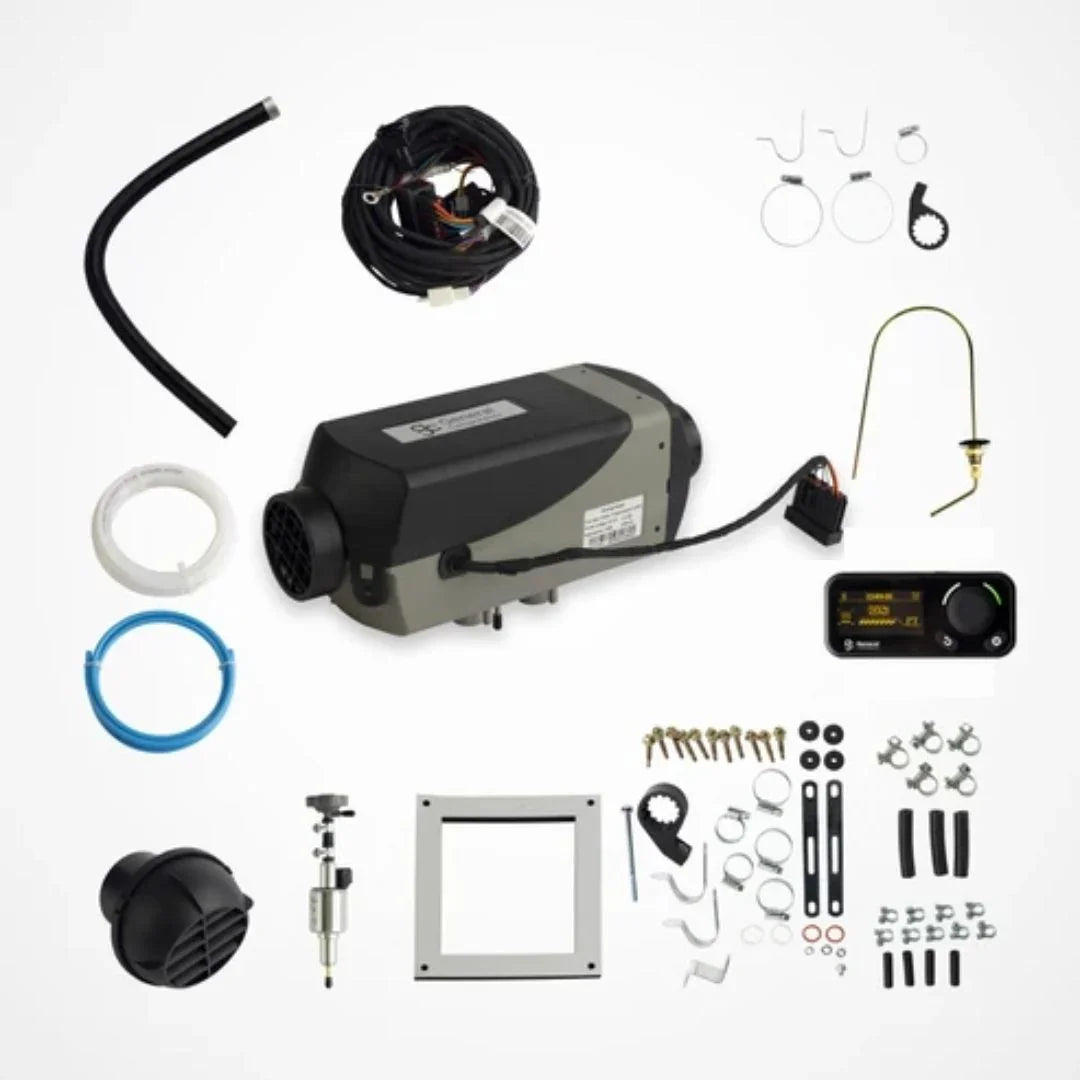

BISON 2200A Heater Kit
BISON 2200A Heater Kit
Regular price
$1,169.00 CAD
Regular price
Sale price
$1,169.00 CAD
Unit price
per
Couldn't load pickup availability
Description
Description
Features
Features
- High-Performance Heating: Provides 2.2kW (7500 BTU) of consistent forced air heating.
- Automatic Altitude Adjustment: Adjusts for optimal performance at elevations up to 5000 meters.
- Quiet and Efficient Operation: Engineered to deliver powerful heat with minimal noise, creating a peaceful environment.
- Versatile Fuel Options: Compatible with diesel/kerosene or gasoline fuels in both 12V and 24V versions.

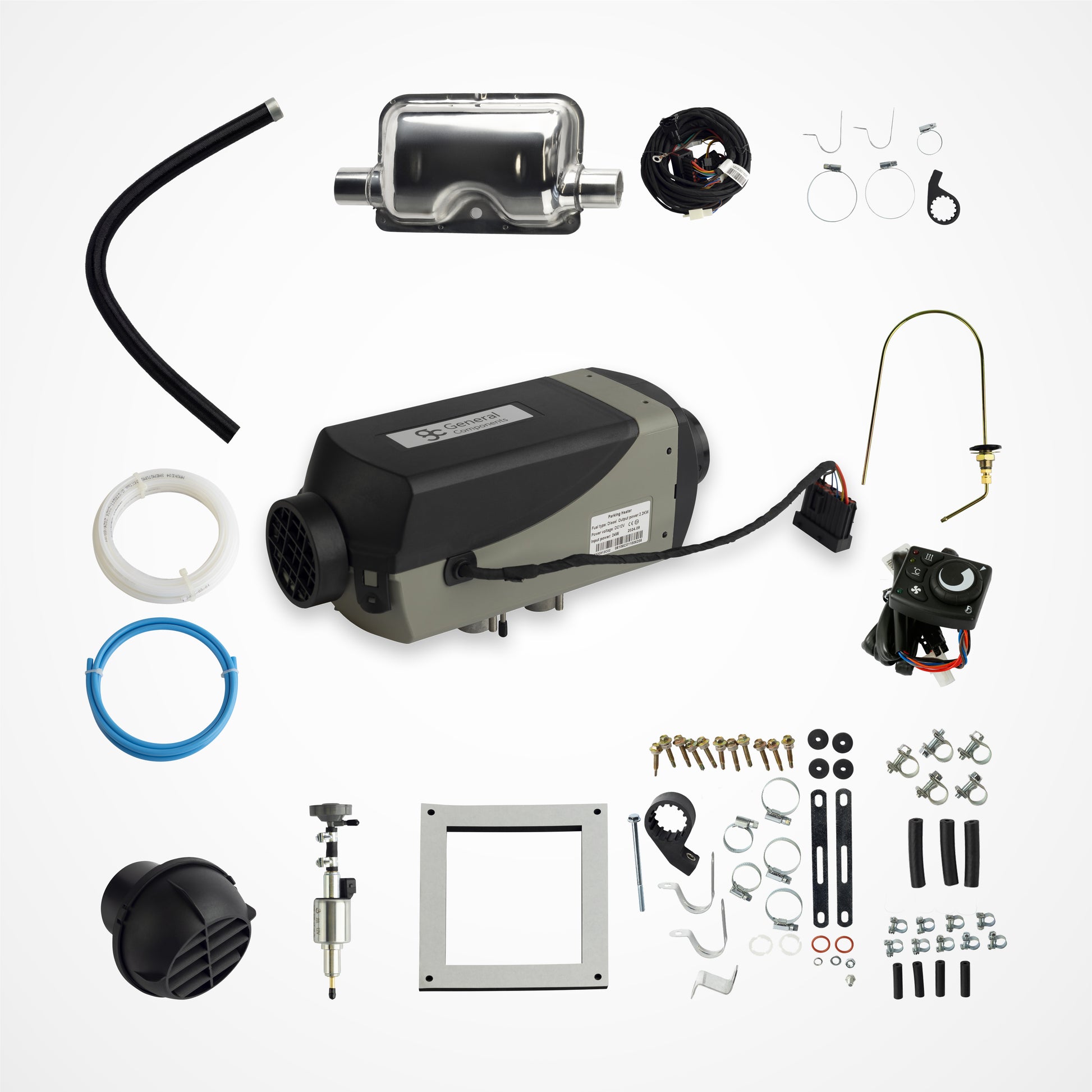

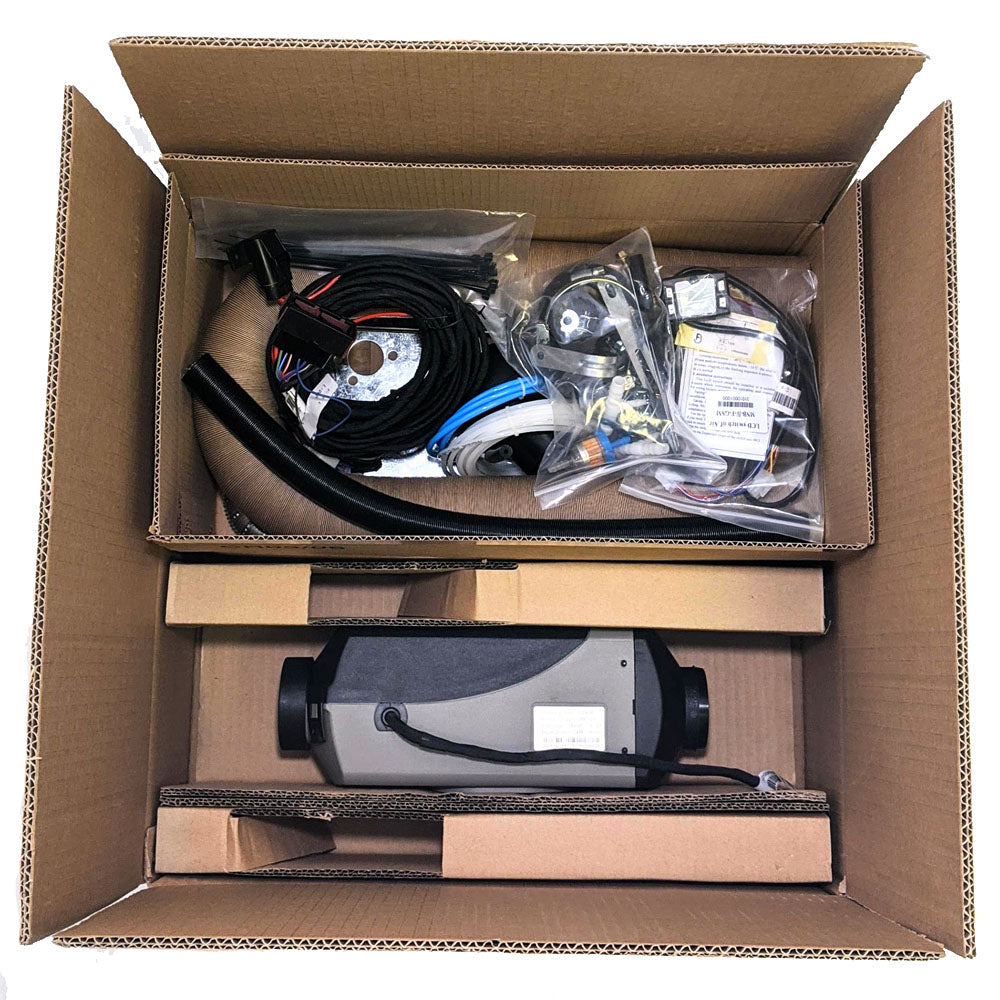

- Complete Installation Kit: Comes with all necessary hardware and components for straightforward installation.
- Eco-Friendly Design: No-idle functionality reduces fuel consumption, making it an environmentally responsible choice.
- Rugged and Reliable: Built to endure harsh conditions, guaranteeing long-lasting performance.

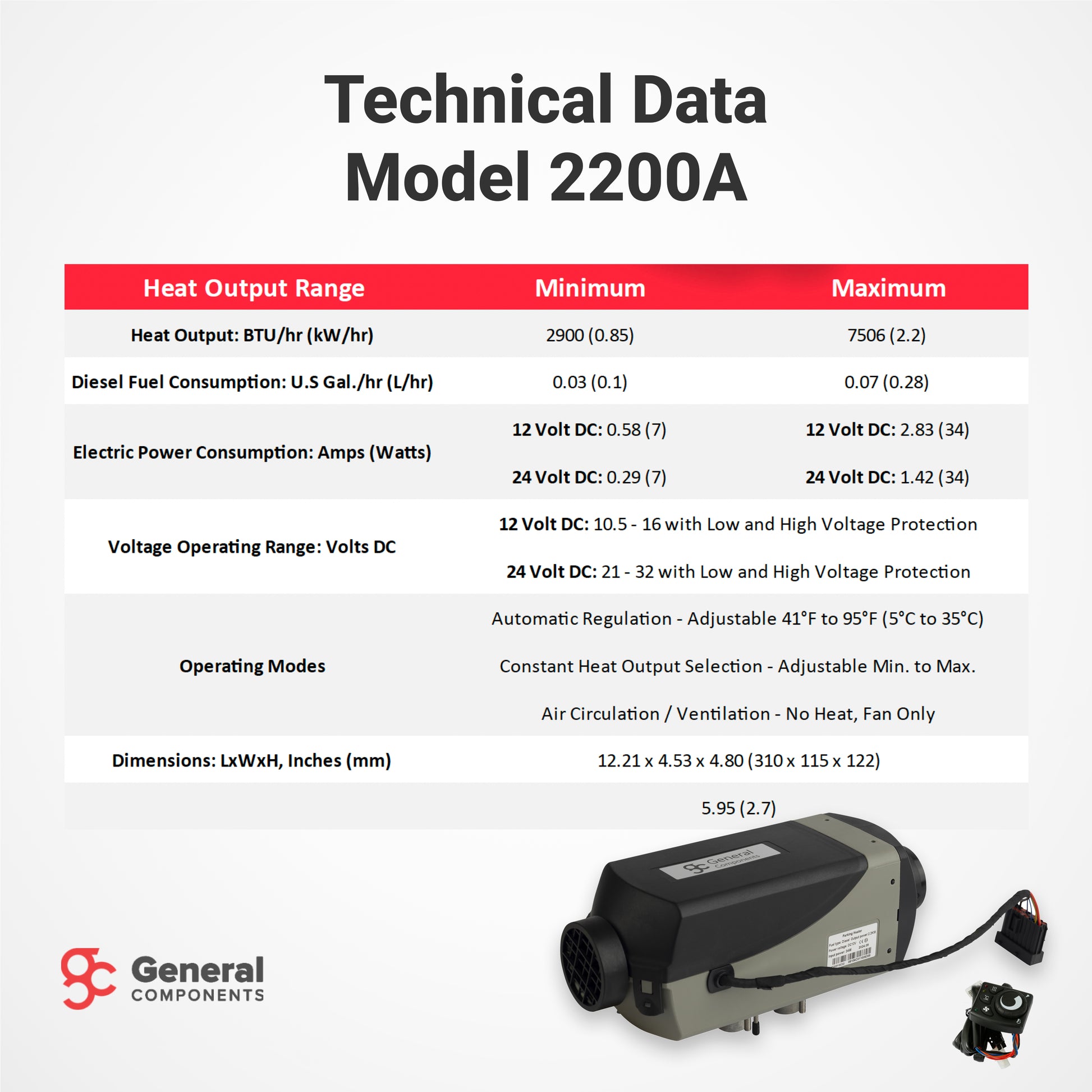

| Specification | Value |
|---|---|
| Heat Output: BTU/hr (kW/hr) | 2900(0.85) – 7506(2.2) |
| Diesel Fuel Consumption: U.S Gal./hr (L/hr) | 0.03 (0.1) – 0.07 (0.28) |
| Electric Power Consumption: Amps (Watts) @12VDC | 0.58 (7) – 2.83 (34) |
| Electric Power Consumption: Amps (Watts) @24VDC | 0.29 (7) – 1.42 (34) |
| Voltage Operating Range: Volts DC (for 12V models) | 10.5 – 16 with Low and High Voltage Protecton |
| Voltage Operating Range: Volts DC (for 24V models) | 21 – 32 with Low and High Voltage Protecton |
| Operating Modes | Setpoint – Adjustable 41°F to 95°F (5°C to 35°C) Constant Heat Output Selection – Adjustable Min. to Max. Air Circulation / Ventilation – No Heat, Fan Only |

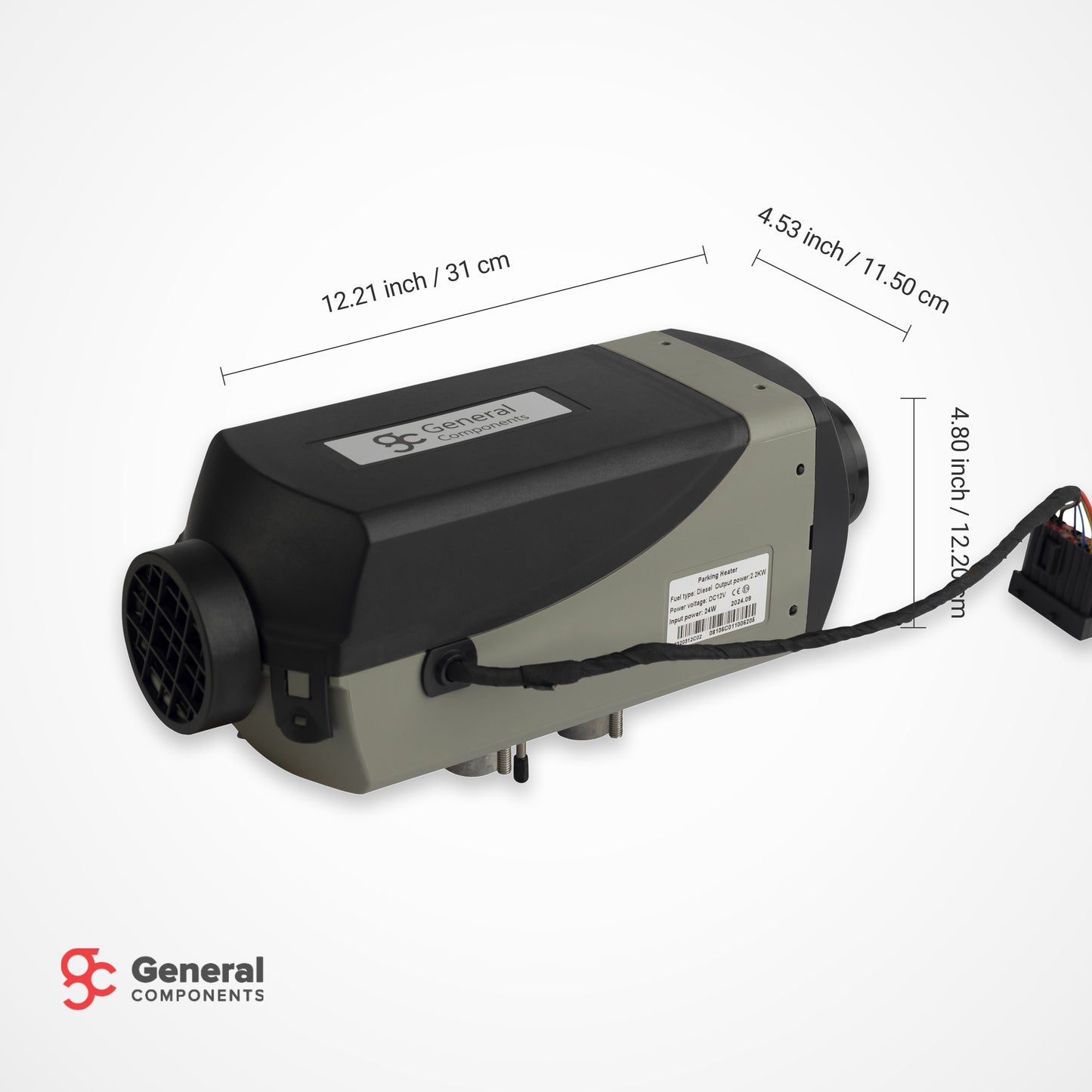

| Unit Dimensions: LxWxH, Inches (mm) | 12.21 x 4.53 x 4.80 (310 x 115 x 122) |
| Unit Weight: lbs (kg) | 5.95 (2.7) |
Shipping Information
Shipping Information
- Free shipping on orders $99+ (Canada & USA)
- Orders ship within 1–2 business daysFast, tracked delivery via UPS, FedEx, or Canada Post
- Shipping rates calculated at checkout for orders under $99
- Tracking info sent as soon as your order leaves our warehouse
Warranty & Support
Warranty & Support
- 2-Year Warranty when installed by a certified dealer
- 1-Year Warranty for marine or off-road use
- Full access to our support team + dealer network across North America
Installation Guide
Installation Guide
Before installation, please upload and read the manual to ensure proper setup.
